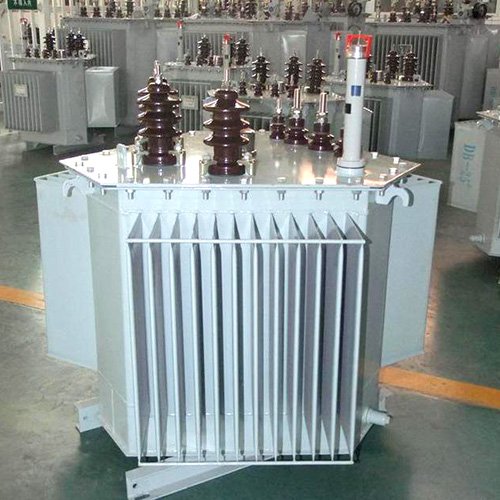

The body of S13 three-dimensional volume core transformer is in the shape of triangular prism with tensile rods set up in the middle and around, which is insulated from upper and lower iron yoke and could form a unity with laminated boards.
The core is made of high-grad cold-rolled silicon steel sheet of high magnetic conductivity and low loss ,which leads to good stability, low noise and low no-load loss.
The coil is made of high-grade magnetic conductor to ensure good electrical conductivity and low no-load loss.
| Model | Rated capacity (kVA) | No-load loss (W) | Load loss | No-load current | Impedance |
| S13-M.RL-30/10 | 30 | 80 | 600/630 | 0.34 | 4 |
| S13-M.RL-50/10 | 50 | 100 | 870/910 | 0.28 | 4 |
| S13-M.RL-63/10 | 63 | 110 | 1040/1090 | 0.26 | 4 |
| S13-M.RL-80/10 | 80 | 130 | 1250/1310 | 0.25 | 4 |
| S13--M.RL-100/10 | 100 | 150 | 1500/1580 | 0.24 | 4 |
| S13--M.RL-125/10 | 125 | 170 | 1800/1890 | 0.23 | 4 |
| S13--M.RL-160/10 | 160 | 200 | 2200/2310 | 0.21 | 4 |
| S13--M.RL-200/10 | 200 | 240 | 2600/2730 | 0.2 | 4 |
| S13--M.RL-250/10 | 250 | 290 | 3050/3200 | 0.19 | 4 |
| S13--M.RL-315/10 | 315 | 340 | 3650/3830 | 0.18 | 4 |
| S13--M.RL-400/10 | 400 | 410 | 4300/4520 | 0.17 | 4 |
| S13--M.RL-500/10 | 500 | 480 | 5150/5410 | 0.15 | 4 |
| S13--M.RL-630/10 | 630 | 570 | 6200/6510 | 0.14 | 4.5 |
| S13--M.RL-00/10 | 800 | 700 | 7500/7870 | 0.13 | 4.5 |
| S13--M.RL-1000/10 | 1000 | 830 | 10300/10800 | 0.12 | 4.5 |
| S13--M.RL-1250/10 | 1250 | 970 | 12000/12600 | 0.11 | 4.5 |
| S13--M.RL-1600/10 | 1600 | 1200 | 14500/15200 | 0.1 | 4.5 |
